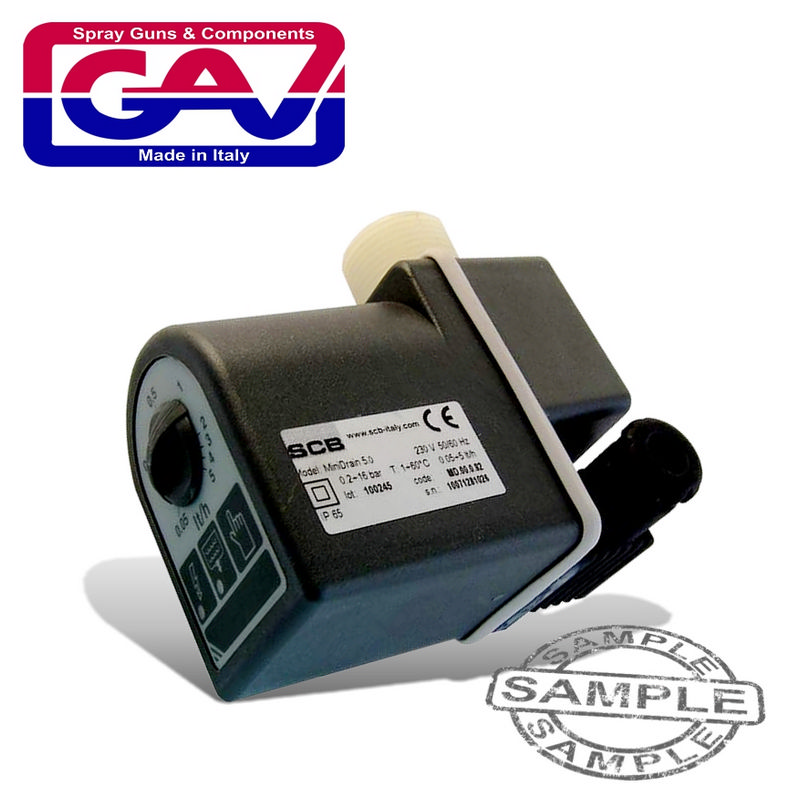

Mini Drain 50 electronic drain

Model GAV MD50

Remove the condensate

The MiniDrain consists of a servo-assisted solenoid valve that opens upon the command of an electronic circuit according to drain capacity. Drain capacity is preset by means of a knob located on the control panel.

Regulation is extremely user's friendly thanks to a scale setting in liters of condensate/hour to avoid any inappropriate calibration or a useless waste of compressed air. Valve delivery remains even, independently from the pressure inside the system thanks to an automatic flow regulator.

It is equipped with a test button for function check and two LED, one for 'voltage on' and the other for 'valve draining'.

• Timed electronic drain: 0.5 to 50 l/h capacity
• Suitable for large capacity compressors (500 m³/h max delivery)
• Suitable for dryers (950 m³/h max)
• Accessories: Ball cock with built-in filler.

Made in Italy
